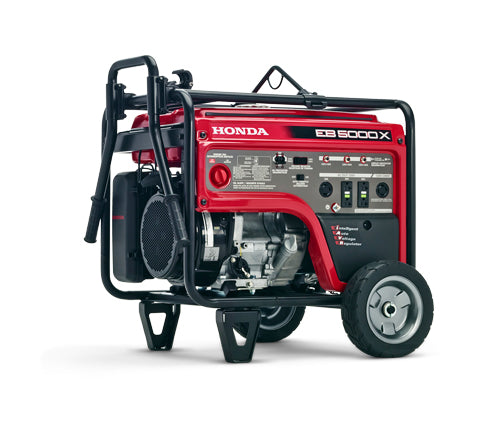

Honda Commercial 5000 GFCI
Couldn't load pickup availability
EB5000X3CT2
MSRP: $2879
The EB5000 has premium features for industrial usage and general purpose applications in commercial and rental situations. Dual voltage power with premium features and GFCI (Ground Fault Circuit Interrupter) protection on duplex receptacles
Specifications
Specifications
Generator Type
Brush type
Maximum AC Output (Watts)
5,000
AC Voltage Available
120 / 240
Maximum Continuous AC Output (Watts)
4,500 7,000 (iAVR)
Max. Rated AC Amperage @ 120 V / 240 V
37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)
Ground Fault Circuit Interrupter (GFCI)
Standard
Frequency (Hertz)
60
Automatic Voltage Regulator
Standard iAVR (Intelligent Automatic Voltage Regulator)
DC Output Volts / Amps
N/A
Common Duplex Receptacle Specifications
37.5 amps/120 VAC continuous is available as combined total
from these twin duplex AC receptacles. Maximum of 18.8 amps available from each
GFCI duplex receptacle.
DC Receptacle Specifications
N/A
DC Charging Cable
N/A
High Capacity 120 / 240 VAC Twist Lock Receptacle
Specifications
This receptacle (NEMA # L5-30R) will supply 30 amps at 120
VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5
kVA) at 240 VAC continuously.
Engine Type
Honda iGX390T2 OHV, 4-stroke, air-cooled
Displacement
389 cc
Starting System
Manual recoil
Low Level Oil Alert System
Standard
Auto Throttle
Standard
Remote Start Capability
No
Fuel Tank Capacity
23.5 litres (5.17 Imp. gal.)
Dimensions
Dimensions
Length: 42"
Width: 21"
Height: 31"
Weight: 215lbs
Warranty
Warranty
Consumer or residential use:
36-month (comprehensive warranty)
Commercial use:
36-month (comprehensive warranty)
