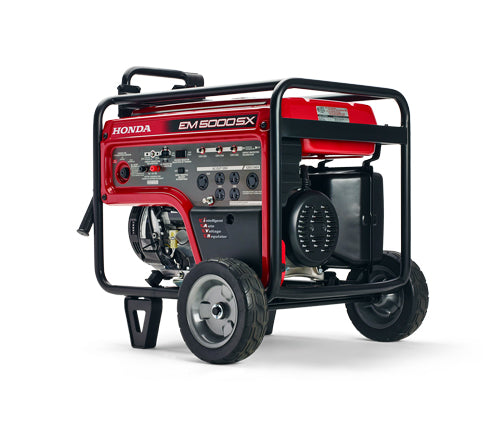

Honda Electric Start 5000

Generator Type

Brush type

Maximum AC Output (Watts)

5,000

AC Voltage Available

120 / 240

Maximum Continuous AC Output (Watts)

4,500 7,000 (iAVR)

Max. Rated AC Amperage @ 120 V / 240 V

37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)

Ground Fault Circuit Interrupter (GFCI)

N/A

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard iAVR (Intelligent Automatic Voltage Regulator)

DC Output Volts / Amps

12 / 8

Common Duplex Receptacle Specifications

37.5 amps/120 VAC continuous is available as combined total
from these twin duplex AC receptacles.

DC Receptacle Specifications

8 amps/12 VDC is available from these +/- thumb screw
terminals. Important Note: AC and DC output can be used simultaneously on this
series only. DC system uses floating N (Neutral) type.

DC Charging Cable

Optional (P/N 32650-825-015)

High Capacity 120 / 240 VAC Twist Lock Receptacle
Specifications

This receptacle (NEMA # L5-30R) will supply 30 amps at 120
VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5
kVA) at 240 VAC continuously.

Engine Type

Honda iGX390T2 OHV, 4-stroke, air-cooled

Displacement

389 cc

Starting System

Electric/recoil

Low Level Oil Alert System

Standard

Auto Throttle

Standard

Remote Start Capability

Optional

Fuel Tank Capacity

23.5 litres (5.17 Imp. gal.)

Length: 42"

Width: 28"

Height: 29"

Weight: 230lbs

Consumer or residential use:

36-month (comprehensive warranty)

Commercial use:

36-month (comprehensive warranty)
