GP Honda - Power Equipment

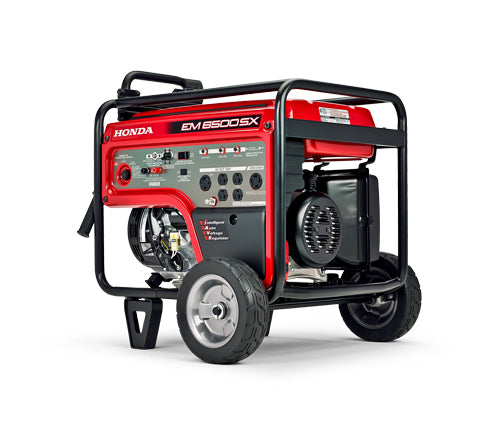

Honda Electric Start 6500
Couldn't load pickup availability
EM6500S2CT2
MSRP: $3689
The Electric Start 6500 has premium features for demanding commercial usage (non-GFCI applications) and reliable home backup use. Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)
Specifications
Specifications
Generator Type
Brush type
Maximum AC Output (Watts)
6,500
AC Voltage Available
120 / 240
Maximum Continuous AC Output (Watts)
5,500 7,000 (iAVR)
Max. Rated AC Amperage @ 120 V / 240 V
45.8 / 22.9 (58.3 / 29.2 for 10 sec. iAVR)
Ground Fault Circuit Interrupter (GFCI)
N/A
Frequency (Hertz)
60
Automatic Voltage Regulator
Standard iAVR (Intelligent Automatic Voltage Regulator)
DC Output Volts / Amps
12 / 8
Common Duplex Receptacle Specifications
40 amps/120 VAC continuous is available as combined total
from these twin duplex AC receptacles. Maximum of 20 amps available from each
GFCI duplex receptacle.
DC Receptacle Specifications
8 amps/12 VDC is available from these +/- thumb screw
terminals. Important Note: AC and DC output can be used simultaneously on this
series only. DC system uses floating N (Neutral) type.
DC Charging Cable
Optional (P/N 32650-825-015)
High Capacity 120 / 240 VAC Twist Lock Receptacle
Specifications
This receptacle (NEMA # L5-30R) will supply 30 amps at 120
VAC continuously. This receptacle (NEMA # L14-30R) will supply 22.9 amps (5.5
kVA) at 240 VAC continuously.
Engine Type
Honda iGX390T2 OHV, 4-stroke, air-cooled
Displacement
389 cc
Starting System
Electric/recoil
Low Level Oil Alert System
Standard
Auto Throttle
Standard
Remote Start Capability
Optional
Fuel Tank Capacity
23.5 litres (5.17 Imp. gal.)
Dimensions
Dimensions
Length: 42"
Width: 28"
Height: 29"
Weight: 240lbs
Warranty
Warranty
Consumer or residential use:
36-month (comprehensive warranty)
Commercial use:
36-month (comprehensive warranty)
