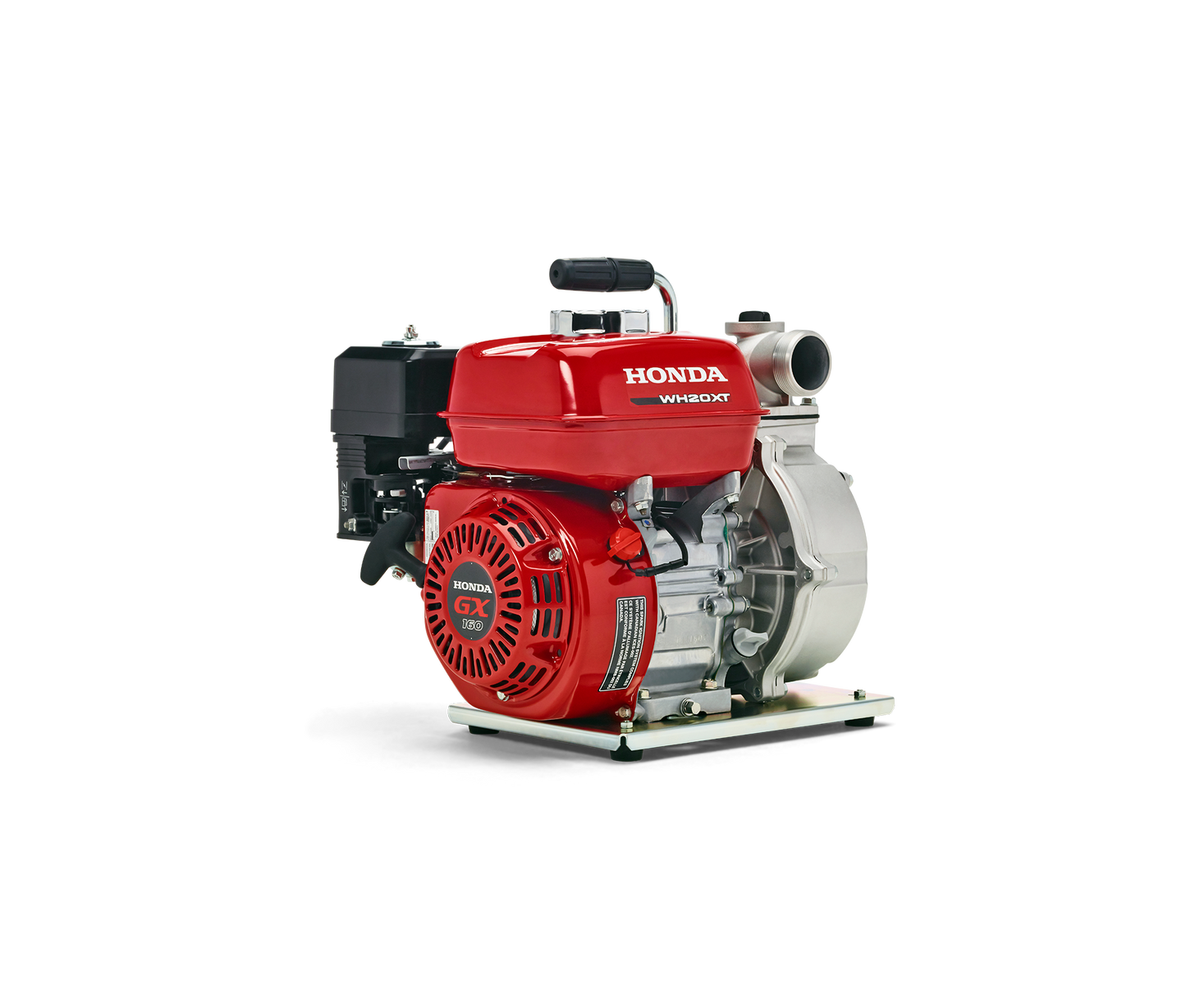

Honda High Pressure 2" Pump
Couldn't load pickup availability
WH20XTC
MSRP: $979 + $59 PDI
A 50 mm (2 in) high-pressure pump (500 litres per minute) designed for a variety of applications requiring high pressure - ideal for sprinklers or nozzles, maximum pressure is 61 psi.
Specifications
Specifications
Water Pump Type
High pressure
Pump
Centrifugal
Type
Self-priming
Suction Port Diameter
50 mm (2 in.)
Discharge Port Diameter
50 mm (2 in.)
Litres Per Minute
500
Imp. Gal. Per Minute
110
Litres Per Hour
30,000
Imp. Gal. Per Hour
6,600
Total Head
43 m (141 ft.)
Suction Head (Total Lift.)
8 m (26 ft.)
Priming Time @ 5 m (16.4 ft.)
80 seconds
Pump Body
Aluminum
Impeller
Cast iron
Drive Unit Type
Direct coupled / mechanical seal
Frame Type
Handle type, steel base
Engine Type
Honda GX160T2, 4-stroke, OHV, single cylinder
Displacement
163 cc (9.95 CID)
Lubrication System
Forced splash
Governor
Mechanical centrifugal
Starting System
Recoil starter
Fuel Tank Capacity
3.1 L (0.68 Imp. gal.)
Oil Alert
N/A
Dimensions
Dimensions
Length: 17"
Width: 15"
Height: 16"
Weight: 60lbs
Warranty
Warranty
Consumer or residential use:
36-month (comprehensive warranty)
Commercial use:
36-month (comprehensive warranty)
