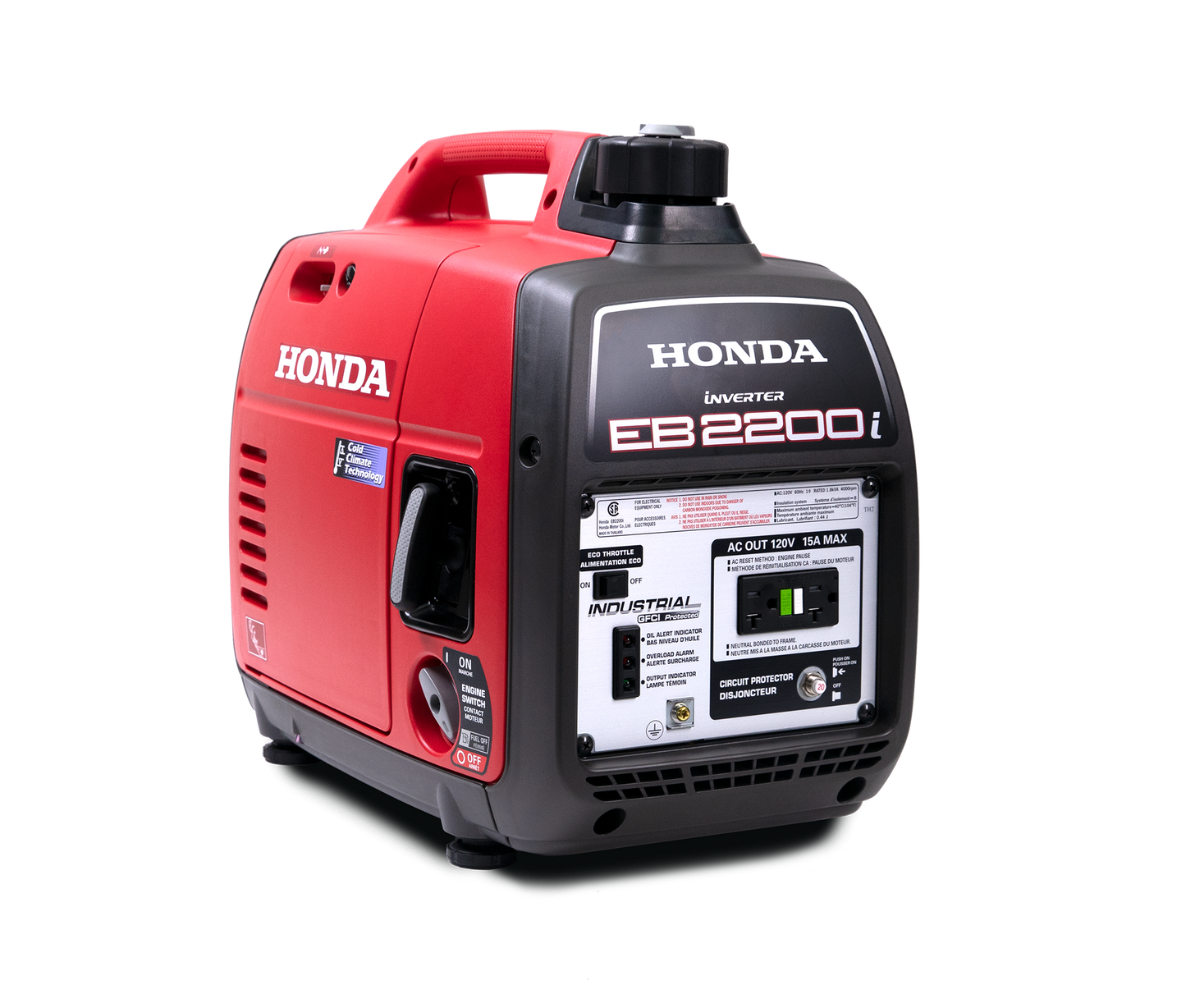

Honda Ultra-Quiet 2200i GFCI

Generator Type

Inverter

Maximum AC Output (Watts)

2,200

AC Voltage Available

120

Maximum Continuous AC Output (Watts)

1,800

Max. Rated AC Amperage @ 120 V / 240 V

15.0 / - (30.0 / - in parallel operation)

Ground Fault Circuit Interrupter (GFCI)

N/A

Standard (EB2200)

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard

DC Output Volts / Amps

12/8.3

N/A (companion)

Common Duplex Receptacle Specifications

15.0 amps/120 VAC continuous is available as combined total
from these two AC receptacles.

N/A (companion)

DC Receptacle Specifications

8.3 amps/12 VDC is available from this receptacle. Important
Note: AC and DC output cannot be used simultaneously. DC system uses floating N
(Neutral) type.

N/A (companion)

DC Charging Cable

Standard

N/A (Companion)

High Capacity 120 / 240 VAC Twist Lock Receptacle
Specifications

N/A (EU2200i)

This receptacle (NEMA # L5-30R) will supply 30.0 amps at 120
VAC continuously in parallel operation.

(Companion)

Engine Type

Honda GXR120T, OHC, 4-stroke, air-cooled

Displacement

121 cc

Starting System

Manual recoil

Low Level Oil Alert System

Standard

Auto Throttle

Eco-Throttle standard

Remote Start Capability

No

Fuel Tank Capacity

3.6 litres (0.79 Imp. gal.)

Length: 21"

Width: 11"

Height: 17"

Weight: 50lbs

Consumer or residential use:

36-month (comprehensive warranty)

Commercial use:

36-month (comprehensive warranty)
